The Innovation Changing HVAC: Patented Quick Connect® Line Sets Explained
The MRCOOL® Patented Quick Connect® Line Set allows homeowners to achieve professional-grade heating and cooling without specialized tools, expensive gauges, or technical training. You can see this technology at work across our premium product lineup, most notably in the MRCOOL DIY® 5th Generation systems.
To understand the impact, it helps to compare and contrast a Mini Split System What is a Mini Split System with a Central Air System What is a Central Air System. Traditional split systems rely on separate indoor and outdoor units connected by raw copper piping that must be assembled on-site. Quick Connect® technology bridges the gap between complex HVAC engineering and homeowner accessibility by prepackaging the most difficult part of the installation.
How the No-Vac® Quick Connect® System Works

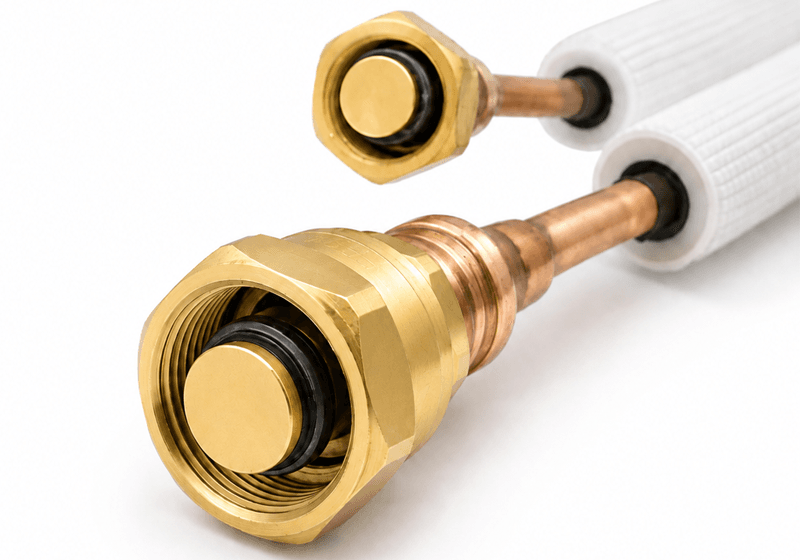

The No-Vac® Quick Connect® system lines come 100% accurately pre-charged with eco-friendly refrigerant from the factory. The ends feature proprietary, simple screw-on Quick Connect® valves. When you connect the lines to the indoor and outdoor units, the valves open to each other, creating a perfectly sealed loop without ever exposing the refrigerant to the outside air. This means no vacuum pump or HVAC gauges are required.
Understanding refrigerant What is Refrigerant is key. Factory-sealing it within the lines guarantees optimal system pressure. When you connect the lines, you are instantly bridging How Compressors Work the outdoor engine pushing the refrigerant with What an Evaporator Coil Does the indoor component absorbing heat. The Quick Connect® Line Sets flawlessly deliver this thermal transfer.

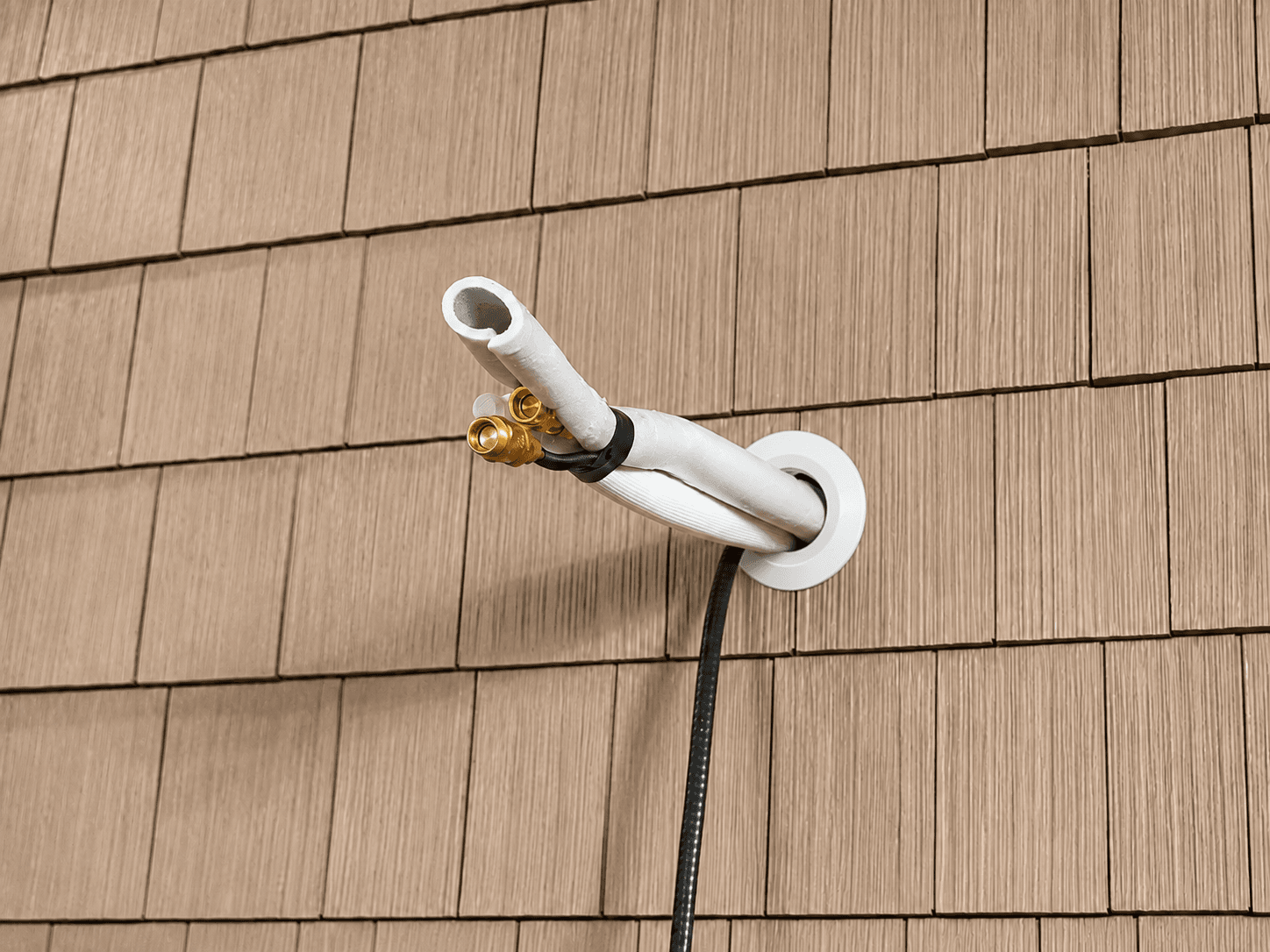

Beyond the mechanics, these lines are built for extreme durability. Every set is wrapped in our pipe insulation, shielding the copper from sun damage, weather, and physical wear to ensure decades of reliable performance.
Eliminating the Hassles
Brazing copper lines involves open flames, nitrogen purging, flaring tools, and vacuuming. It’s a highly technical, multi-hour process. The Patented MRCOOL® DIY® Quick Connect® system eliminates 7 major installation steps compared to conventional brazed line sets. You shouldn't have to pay thousands in labor for a process we’ve engineered a streamlined solution for.
Safety is maximized because eliminating refrigerant handling simplifies the installation process. The system is designed explicitly for do-it-yourself installation, so your warranty remains fully intact regardless of whether you hired a pro or installed it yourself. It’s why we remain the only true do-it-yourself HVAC system in America.
System Compatibility: Where Can You Use Quick Connect®?

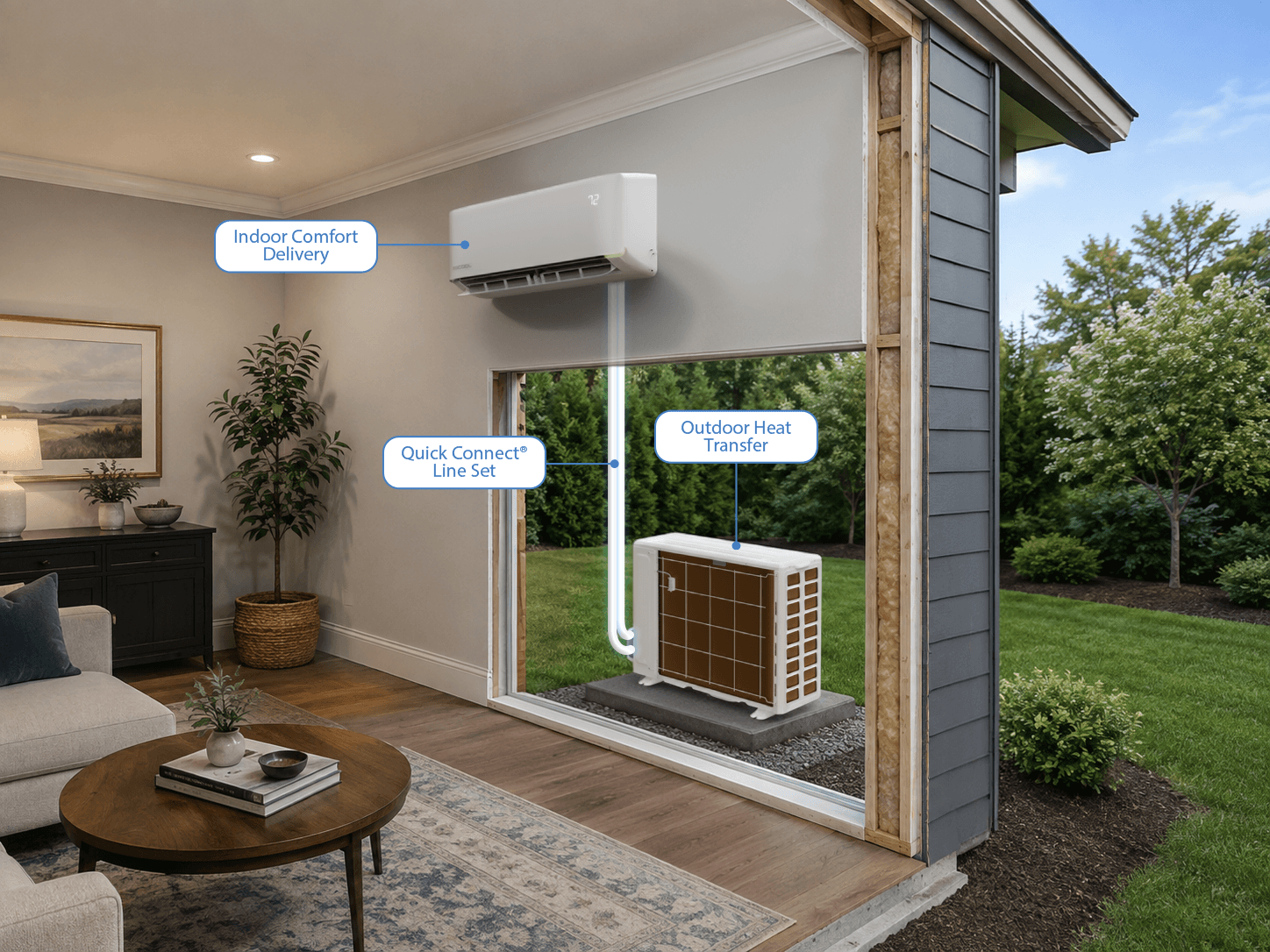

When comparing Ducted vs Ductless Systems or Packaged Unit vs Split Systems, you’ll notice Quick Connect® Line Sets are designed as the connection between two separate parts of a split HVAC system. In a split architecture, like a traditional split-system air condition or heat pump, the HVAC equipment is divided into two distinct components. The Indoor Unit is usually an air handler or evaporator coil, located inside the home. The Outdoor Unit is the condenser or heat pump, located outside.
These two units must be connected by refrigerant lines to move thermal energy (heat) back and forth. Whether you are running a single air handler or scaling up to a Multi-Zone vs Single Zone configuration, these lines make branching out to different rooms simple. Because they are pre-charged with refrigerant and feature specialized fittings that allow them to be connected manually, adding a zone is as easy as running a new line and screwing it in.
MRCOOL® DIY® systems aren't just air conditioners; they provide efficient heating and cooling. The Quick Connect® Line Sets transport the necessary thermal energy for both, reversing flow seamlessly based on your seasonal needs. Learn more: What is a Heat Pump?
Ideal Applications and Solutions
Because of their flexibility and easy installation, Quick Connect® Line Sets make climate control possible in spaces that traditional systems struggle to reach.
- Homes Without Ductwork: They are an excellent retrofit solution, allowing historic or older homes to modernize their comfort without tearing open walls.

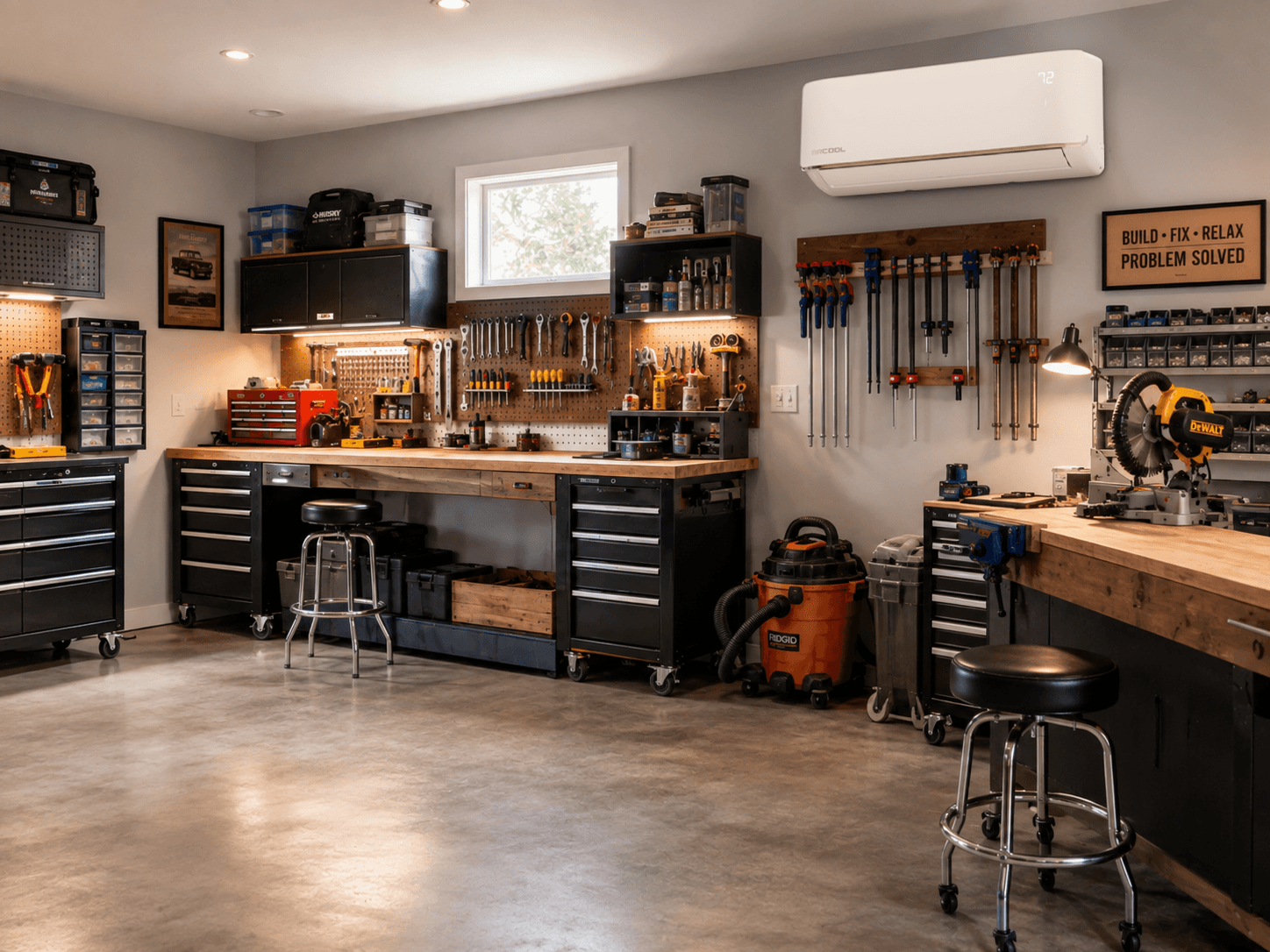

- Room Additions & Garages / Workshops: Expand the comfort of your living space quickly without the challenge of modifying existing central ductwork.
- Rental Properties / Property Managers: Quick installations drastically lower overhead costs, minimize tenant disruption, and allow maintenance teams to swap units rapidly.
Mastering Climate & Efficiency
- High Energy Bills / Efficiency: A correctly charged system runs more efficiently. Quick Connect® Line Sets directly support our energy-efficient principles (see Inverter Technology Explained and Energy Efficiency Explained ), ensuring the compressor isn’t overworked due to improper, manually-gauged refrigerant levels.
- Coastal Climate HVAC & Cold Climate HVAC: The pipe insulation and brass connectors offer resilience against salty coastal air and freezing winter extremes.
- Whole-Home Systems & Solar Integration: The scalability of these DIY® systems complement solar setups by drawing precise, low-amp variable power exactly where it is needed. So it fits perfectly into a sustainable, whole-home energy footprint.
Sizing, Scaling, and Professional Applications

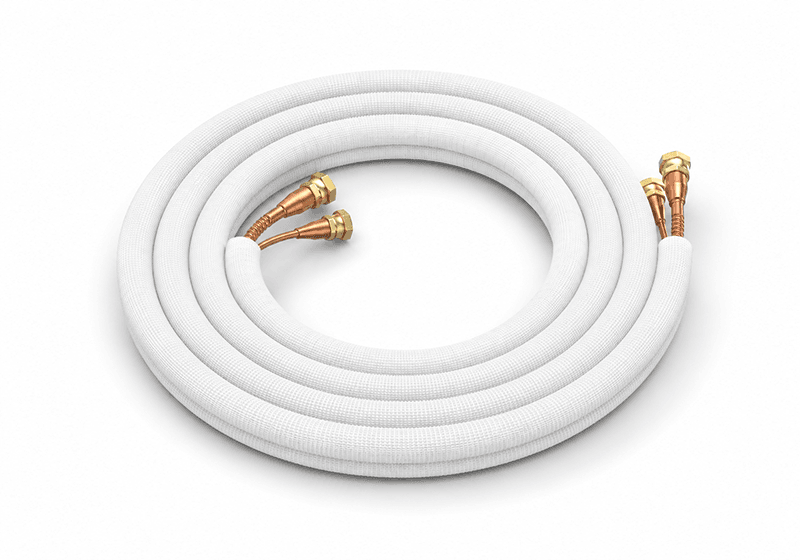

Designing your system is straightforward. When evaluating your BTU Requirements by Square Footage, you select the appropriate air handler and match it with the necessary line set length. Whether you need 11.5, 16, 25, 35, or 50 feet to accommodate different Air Handler Mounting Options, the lines screw together securely with our specialized, leak-proof couplers.
When comparing the total Cost of Mini Split vs Central Air, and taking the Electrical Requirements for HVAC Systems and labor into account, the savings resulting from the Quick Connect® Line Sets are undeniable.
The Quick Connect® Line Sets are DIY-friendly, but professionals love them too. Contractors can complete jobs in a fraction of the time, eliminating the tedious vacuuming process and allowing them to service more clients in a single day. Read more about how MRCOOL® Pre-Charged Line Sets Revolutionize HVAC Installation for Contractors.
Conclusion
The patented MRCOOL® Quick Connect® Line Sets remove the need for vacuuming and professional refrigerant handling. We’re offering an innovative solution that saves homeowners on installation costs while maintaining efficiency and safety.
Ready to take control of your home comfort without the cost of professional labor? Shop MRCOOL DIY® Systems and discover your perfect, easy-to-install setup today.
Frequently Asked Questions
What exactly is a Quick Connect® Line Set?
It is a specialized, pre-charged copper piping system used to connect the indoor air handler to the outdoor condenser of a mini-split HVAC system. Unlike traditional copper lines that are empty and require professional preparation, Quick Connect® lines come sealed from the factory with the precise amount of refrigerant already inside.
Why don’t I need a vacuum pump during installation?
In a traditional HVAC installation, a technician must use a vacuum pump to suck out all the ambient air and moisture from the empty copper lines before releasing the refrigerant. Because Quick Connect® lines are already vacuumed, sealed, and pre-charged at the factory, this step is entirely bypassed. When you tighten the specialized couplers, an internal mechanism opens the flow of refrigerant without letting any outside air or moisture in.
Can I cut the line set if it is too long for my setup?
Absolutely not. Because the lines are pressurized with refrigerant, cutting them will instantly vent the refrigerant into the atmosphere. This will permanently ruin the line set, void your warranty, and can be dangerous. If you have excess line, it should be carefully coiled horizontally (to ensure proper oil return to the compressor) and stored neatly out of the way near the outdoor condenser.
Are systems with pre-charged lines as efficient as traditionally installed systems?
Yes. As long as the couplers are tightened correctly to prevent leaks, a system using Quick Connect® lines operates with the exact same energy efficiency (SEER rating) and heating/cooling capacity as a traditionally brazed and vacuumed system.
Is it safe to disconnect the lines if I need to move the unit later?
The Quick Connect® couplers are designed for a secure, permanent, one-time connection to ensure a leak-proof seal.

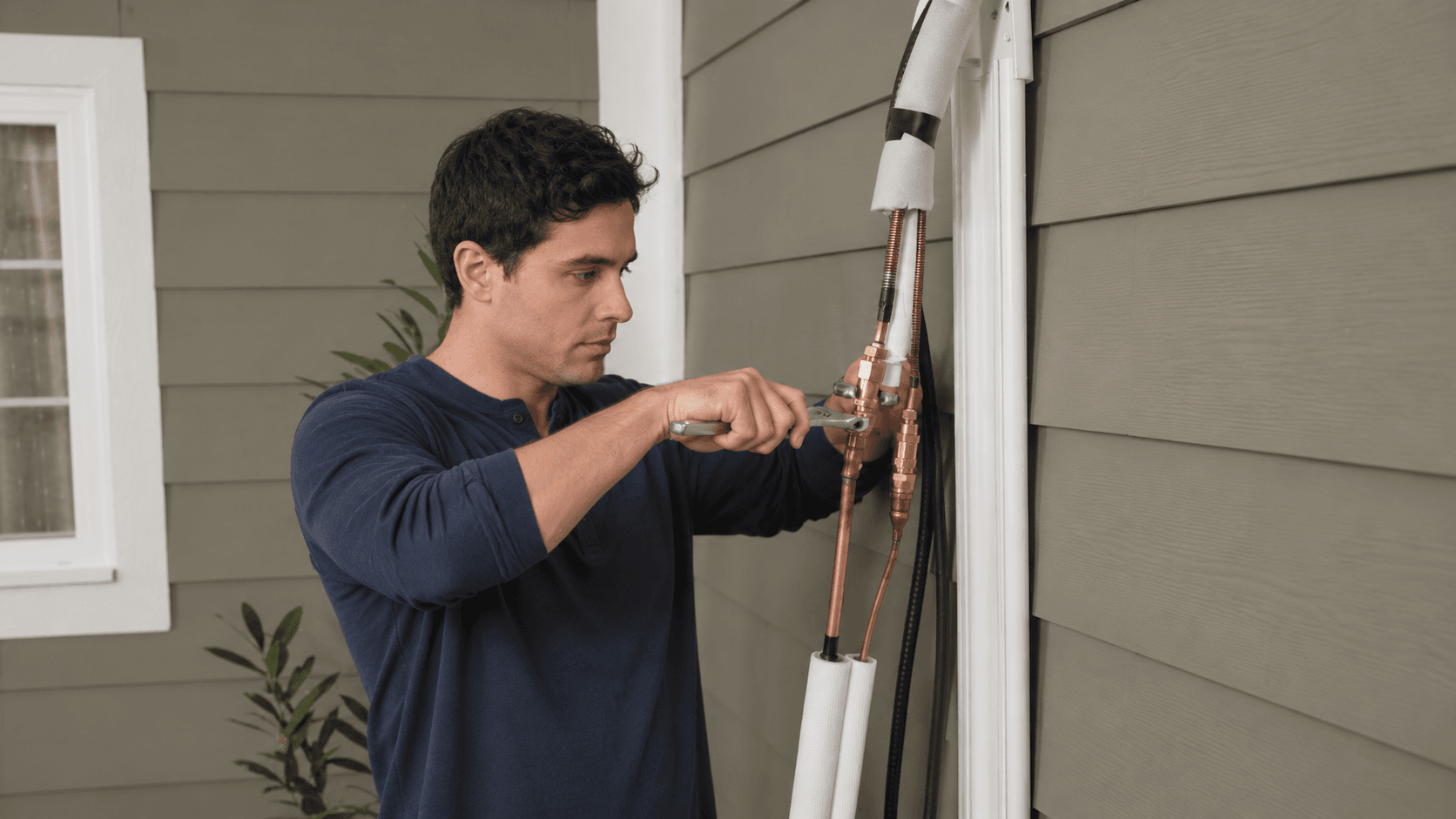

How tight do the connections need to be?

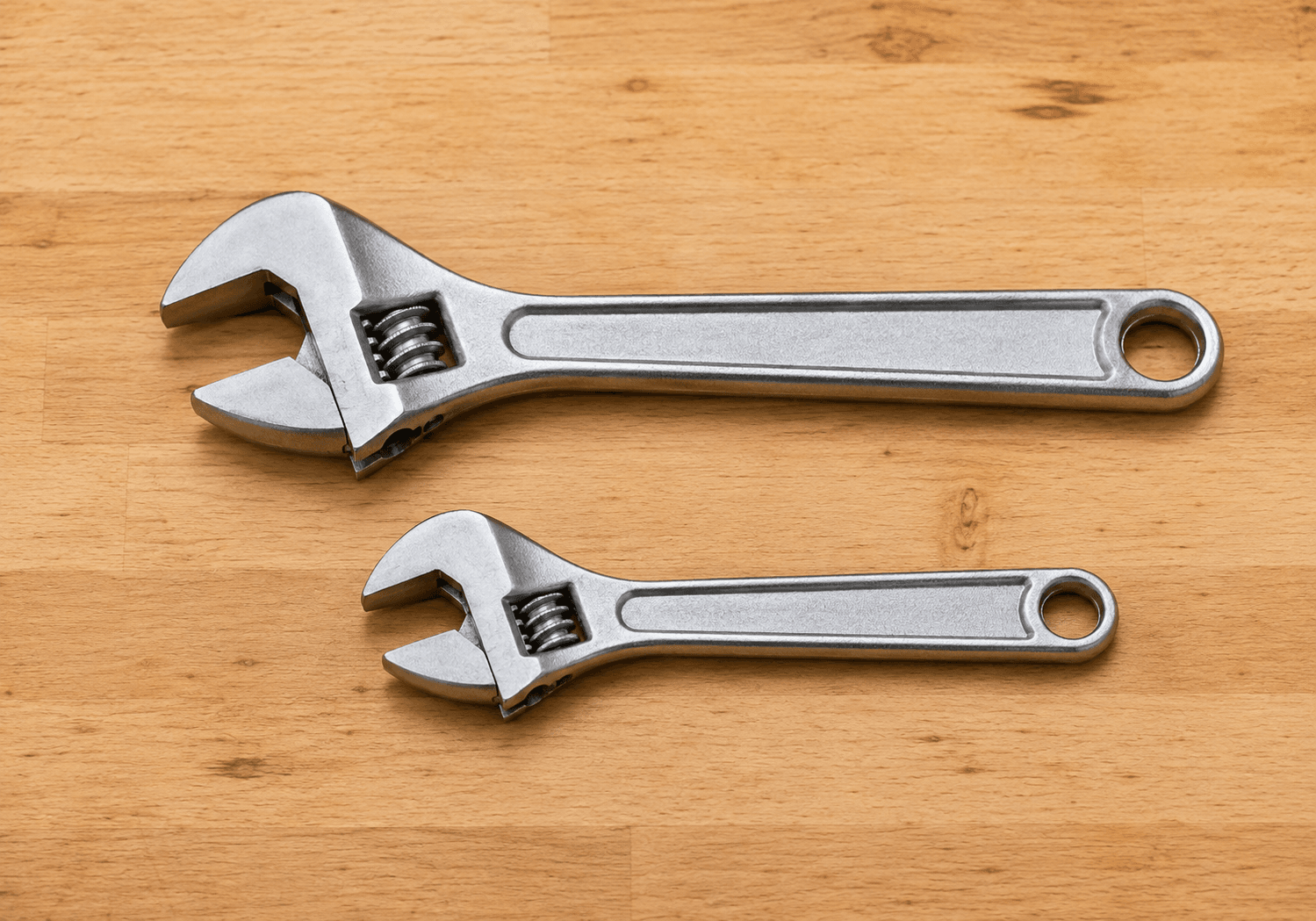

The connections must be tightened exactly to the manufacturer's specified torque using standard wrenches or a torque wrench. Under-tightening is the most common cause of slow refrigerant leaks over time, while severe over-tightening can strip the brass threads. Always follow the specific instructions provided with your system.
