Your HVAC System Is Only as Good as What Supports It
You invested in a high-performance MRCOOL® heating and cooling system. The compressor hums and every room reaches the perfect temperature. But beneath that comfort, condensation silently builds.
Every air conditioning system produces moisture as warm, humid air passes over the evaporator coil. Before you realize it, that water can cause clogged drain lines, overflowing pans, or outdoor units sitting in standing water. The result is thousands of dollars in damage. According to insurance industry data, water damage from HVAC condensate overflow is one of the most common and costly homeowner claims.
Most homeowners don’t realize that a working AC can produce gallons of condensation every single day. I’ve seen unchecked drain clogs destroy ceilings and hardwood floors in a matter of hours. If water starts backing up, the CoolGuard switch immediately cuts the system’s power, stopping the overflow before it damages drywall. — John Tucker, HVAC Professional
CoolGuard™ accessories from MRCOOL® are purpose-built to stop these problems before they start. Whether you're a DIY homeowner installing your first mini-split or a contractor completing a high-output central air system, CoolGuard™ can protect your equipment from environmental wear, and ensure a clean, professional installation that performs reliably for years.
Active Moisture Protection: Pumps & Safety Switches That Prevent Catastrophic Water Damage
For Ductless Mini-Splits (MRCOOL® DIY®, Advantage & Olympus Series)
The Problem: Gravity drainage isn't always possible when routing condensate lines horizontally across rooms or through finished walls. Without a way to move water upward or away from the air handler, moisture accumulates and eventually overflows.
The CoolGuard™ Solution:

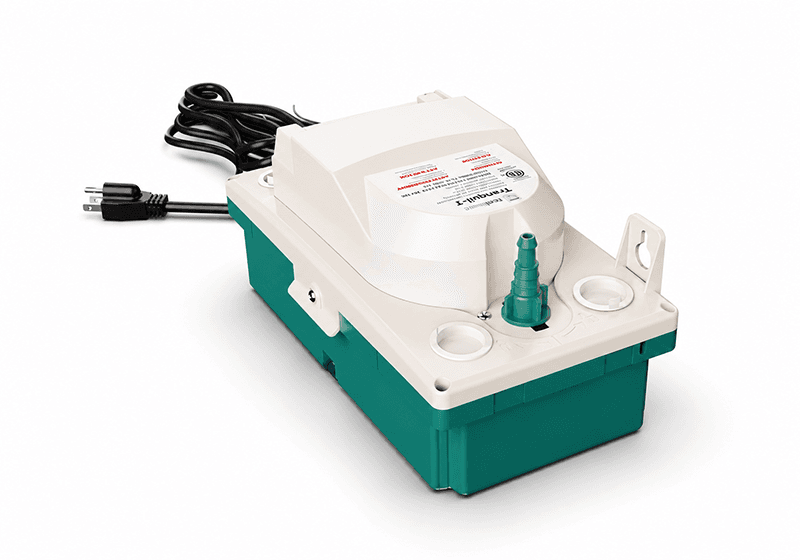

Tranquil T Condensate Pump (TMT24WS100)
For installations where gravity drainage simply isn't an option, this ultra-quiet pump (under 30 dB) lifts condensate up to 24 feet out of living spaces without adding noise. It's specifically designed for the low-profile needs of mini-split systems, keeping your installation whisper-quiet and moisture-free.
For Central Air & High-Output Systems (MRCOOL® Central Air Handlers & Universal Series)
The Problem: Heavy summer cooling generates enormous condensate volume. When primary drain lines clog from algae, mineral buildup, or debris, water backs up fast, leading to costly ceiling damage, interior moisture issues, and potential mold growth.
The CoolGuard™ Solution:

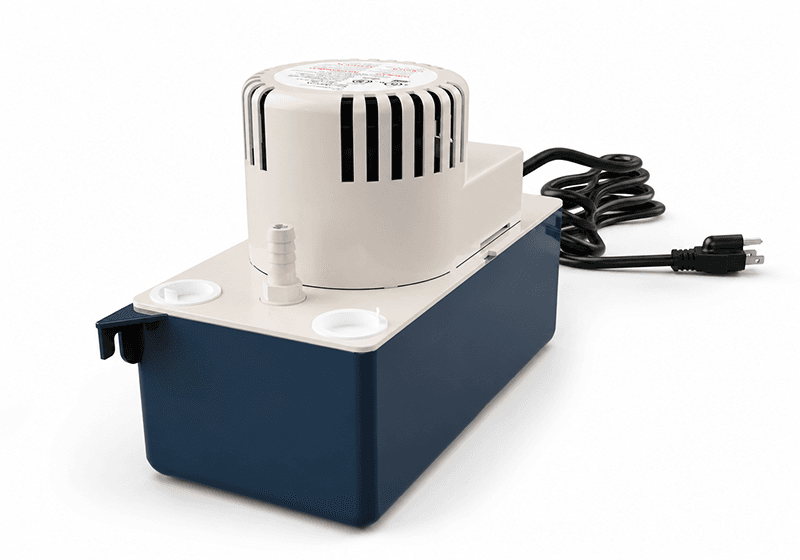

High-Profile Condensate Pump (RTP22WS115V)
Moves up to 145 gallons per hour with a 22-foot lift capacity to manage extreme condensate volume. Runs on standard 115V residential power and fits into tight mechanical spaces near the air handler. This is the workhorse for basement installations, below-grade equipment rooms, or any setup where condensate must travel upward before reaching a disposal point.

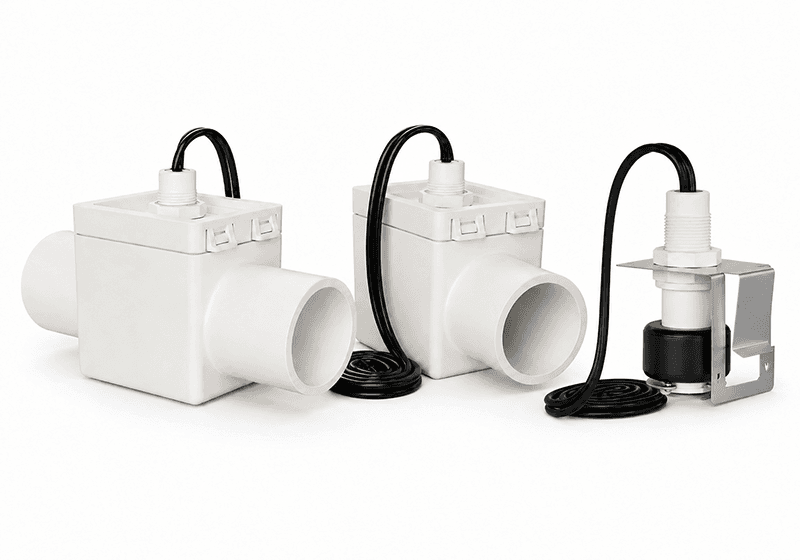

Condensate Safety Float Switches (FS1, FS2, FS3)
These float switches monitor water levels inside the drain pan or along the drain line. If water rises too high (indicating a clog or backup), the switch automatically shuts down the HVAC system before overflow occurs. Three configurations cover different installation types:
- FS1: Designed for sloped drain lines
- FS2: Built for primary drain pan applications
- FS3: Engineered for secondary drain line protection
Safety switches reduce mold risk, signal maintenance needs before damage happens, and may be required by local building codes, especially for attic-mounted air handlers where overflow could destroy ceilings below.
Clean Line Routing & Drainage: Hoses and Traps for Professional-Grade Installations
For Ductless Mini-Splits (MRCOOL® DIY®, Advantage & Olympus Series)
The Problem: Mini-split air handlers require sleek, low-profile drain routing that won't kink, collapse, or detract from interior aesthetics, especially in finished living spaces.
The CoolGuard™ Solution:

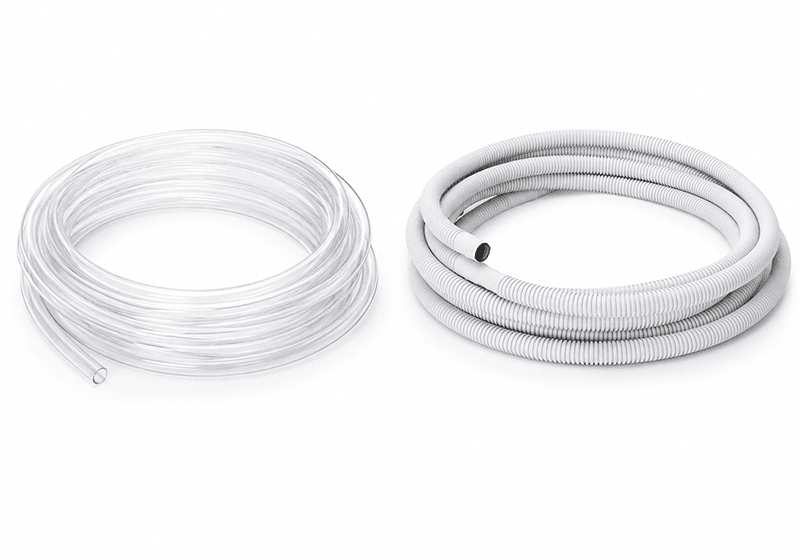

Drain Hoses (31CF102 & 35CF102)
The flexible corrugated hose (31CF102) and clear vinyl hose (35CF102) connect directly to standard 3/8" mini-split air handler drain outlets. The corrugated design resists kinking through tight bends, while the clear vinyl option allows visual inspection of condensate flow without disassembly. It’s perfect for DIY homeowners who want to keep an eye on things.
For All System Types

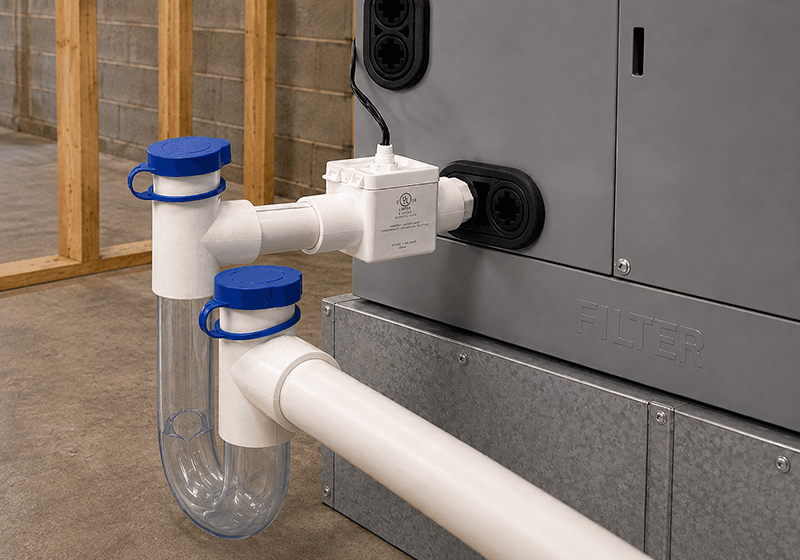

Condensate Trap Kit with Overflow Switch (CTK-2)
This all-in-one solution combines a clear, cleanable condensate trap with an integrated 24VAC overflow safety switch. The trap prevents air from being drawn into the drain line (which causes gurgling or improper drainage), while the overflow switch provides automatic shutoff protection.
Key benefits:
- Clear housing allows visual inspection without disassembly
- Easy-clean design reduces maintenance over the life of your system
- 3/4" connection fits standard HVAC drain lines
- 24VAC operation is compatible with most residential systems
- Integrates with standard thermostat circuits for seamless operation
Contractors love the CTK-2 because it delivers a clean, professional-looking installation with built-in protection in fewer parts and less labor time.
Solid Foundations: Pads & Brackets That Maximize Airflow and Extend Equipment Life
For Side-Discharge Outdoor Units (MRCOOL® Universal & DIY® Multi-Zone Condensers)
The Problem: Placing an expensive heat pump or condenser directly on the ground exposes it to standing water, mud, snow accumulation, lawn equipment hits, pest intrusion, and vibration damage. Over time, these hazards shorten equipment life and reduce efficiency.
The CoolGuard™ Solution:

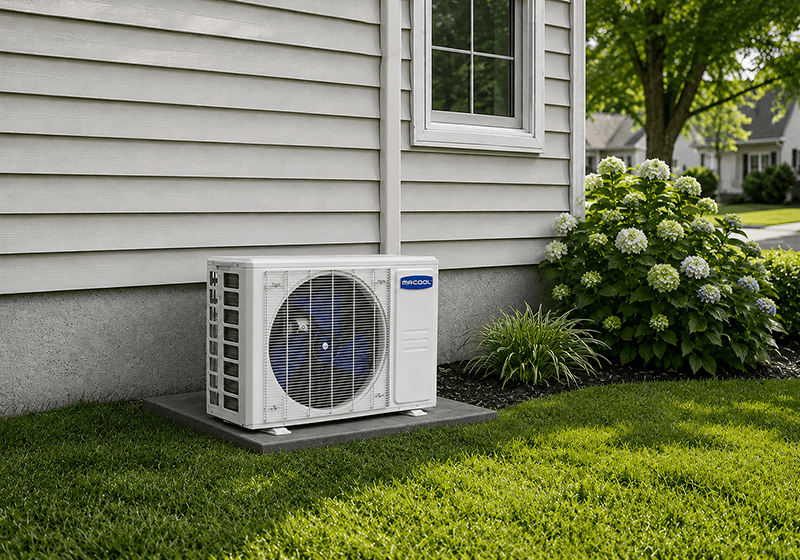

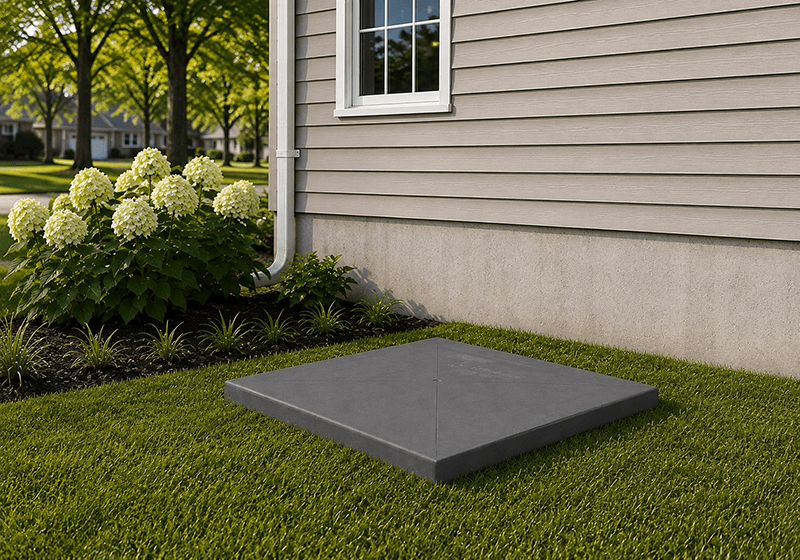

Equipment Pad (EP04)
This heavy-duty, UV-resistant polypropylene pad (38" x 18" x 3") provides a stable, level foundation that reduces vibration and protects against ground-level hazards.
- Shields against pests, insects, and critters that damage condenser wiring
- Eliminates rattling against bare ground, preventing long-term mechanical wear
- UV and weather resistant for year-round outdoor performance
- Transfers the load evenly across the pad surface for stable, balanced operation
- Lightweight yet rugged for easy placement and lasting durability

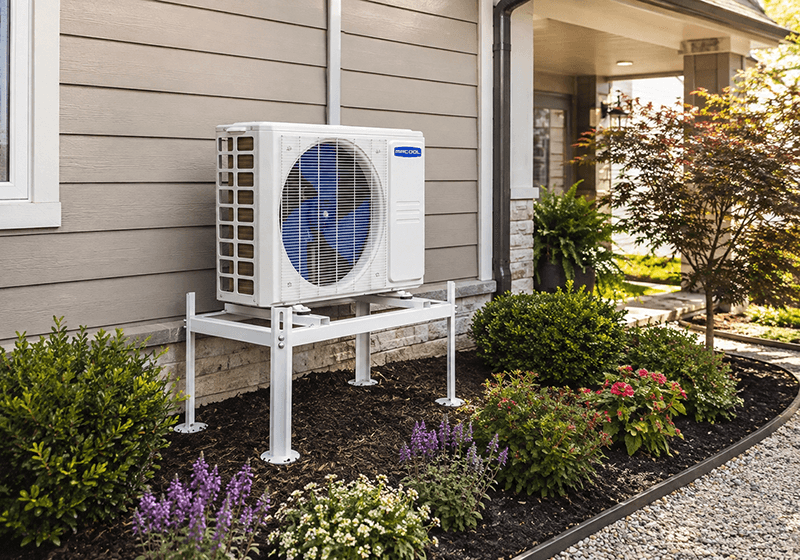

Weldbracket Condenser Stand (ACB-J02)
For installations that need major elevation, this galvanized and cold-pressed steel bracket mounts side-discharge condensers securely off the ground at 18.9 inches high, well above snow drifts, flood risk, and yard debris.
- Supports up to 220 lbs for most residential mini-split and heat pump condensers
- Maintains unrestricted airflow for optimal efficiency and performance
- All installation hardware included for a straightforward setup
- Dimensions: 33.46" x 15.75" x 18.9"
The Weldbracket is essential for flood-prone areas, snowy climates, or anywhere ground-level threats could compromise your system's performance and longevity.
How CoolGuard™ Accessories Work Together as a Complete Protection System
The real benefit of CoolGuard™ is how these products complement each other, creating layered protection:
- Foundational layer: The Equipment Pad (EP04) or Weldbracket (ACB-J02) provides a stable, elevated base that protects your outdoor condenser from moisture, pests, and debris.
- Drainage layer: Inside, Drain Hoses (31CF102/35CF102) route condensate cleanly while the Condensate Trap Kit (CTK-2) keeps lines flowing properly. The Tranquil T-Pump (TMT24WS100) or High-Profile Pump (RTP22WS115V) handles drainage where gravity can't.
- Safety layer: Float switches (FS1, FS2, FS3) serve as the last line of defense, automatically shutting down the system before overflow can cause damage.
Together, these accessories create a professional, worry-free HVAC installation that protects against the most common causes of system damage and water-related property loss.
Frequently Asked Questions About CoolGuard™ Accessories
Do I need a condensate safety switch if I already have a drain line?
Yes. Drain lines can clog at any time from algae, debris, or mineral buildup. A safety switch is your backup plan that prevents damage when (not if) a clog occurs. Many local building codes now require overflow protection on HVAC installations.
Which condensate pump do I need for my system?
For ductless mini-splits where noise matters, the Tranquil T (TMT24WS100) is ideal at under 30 dB with a 24-foot lift. For central air handlers and high-output systems generating heavy condensate volume, the High-Profile Pump (RTP22WS115V) handles up to 145 GPH with a 22-foot lift.
Can I install CoolGuard™ accessories myself?
Many CoolGuard™ products are designed for straightforward installation, especially drain hoses, equipment pads, and the Weldbracket stand. However, electrical connections (like wiring a safety switch or pump into your HVAC control circuit) should be performed by a qualified technician to ensure proper operation and code compliance.
Are CoolGuard™ accessories compatible with all HVAC brands?
CoolGuard™ accessories use standard sizing and connections that work with most residential HVAC systems, including mini-splits, central ducted systems, and heat pumps. They're designed to pair seamlessly with all MRCOOL® product lines.
What's the difference between the FS1, FS2, and FS3 safety switches?
Each model is designed for a different installation configuration: FS1 for sloped drain lines, FS2 for primary drain pans, and FS3 for secondary drain applications. Your HVAC contractor can recommend the right model based on your specific equipment setup.
How often should I inspect my condensate safety switch and drain lines?
Check condensate safety switches and drain lines at the start of each cooling season. Clear any visible buildup in the trap, test switch operation, and ensure drain lines are flowing freely.
Do I need an equipment pad AND a condenser stand?
Not typically. Choose based on your situation: the Equipment Pad (EP04) is ideal for ground-level placement on flat surfaces, while the Weldbracket (ACB-J02) is better for wall-mounted elevation in flood-prone, snowy, or debris-heavy environments.
Protect Your System. Prevent Costly Repairs. Complete Your Build.
Water damage from HVAC condensate overflow is one of the most preventable problems in home comfort. And ground-level hazards impact your outdoor equipment every single day. CoolGuard™ accessories from MRCOOL® give you the tools to stop leaks before they start, shield your system from the elements, and create a clean, professional installation that performs reliably for years to come.
Don't just install your MRCOOL® system. Protect it.
Bundle CoolGuard™ accessories with your MRCOOL® heat pump or mini-split purchase through your local MRCOOL® dealer.
